Intel’s 14A Node Hits Key Yield Milestone, Paving Way for Advanced Network Chips by 2028

📰Original Source: ETTelecom

Intel’s 14A Node Hits Key Yield Milestone, Paving Way for Advanced Network Chips by 2028

Intel’s CFO, David Zinsner, has confirmed that the defect density of the company’s next-generation 14A (1.4nm) fabrication process is tracking “better than expected,” a critical indicator for yield and cost. This progress signals a major step toward the planned start of mass production in 2028, with profound implications for the development of high-performance, energy-efficient chips for next-generation telecom infrastructure, AI accelerators, and edge computing.

Source: ETTelecom, reporting on Intel CFO David Zinsner’s comments at the Citi 2026 Global Technology Conference on August 30, 2026. Original reporting available at ETTelecom.com.

Key Telecom Insight: The successful maturation of Intel’s 14A process is not just a semiconductor story; it is a foundational enabler for the telecom industry’s future. It promises the silicon necessary for 6G baseband processors, terabit optical transport, disaggregated RAN (O-RAN) units, and power-efficient AI inference at the network edge, all while potentially reshaping the global foundry landscape and supply chain security for network equipment vendors.

Technical Deep Dive: 14A’s RibbonFET and Backside Power Delivery

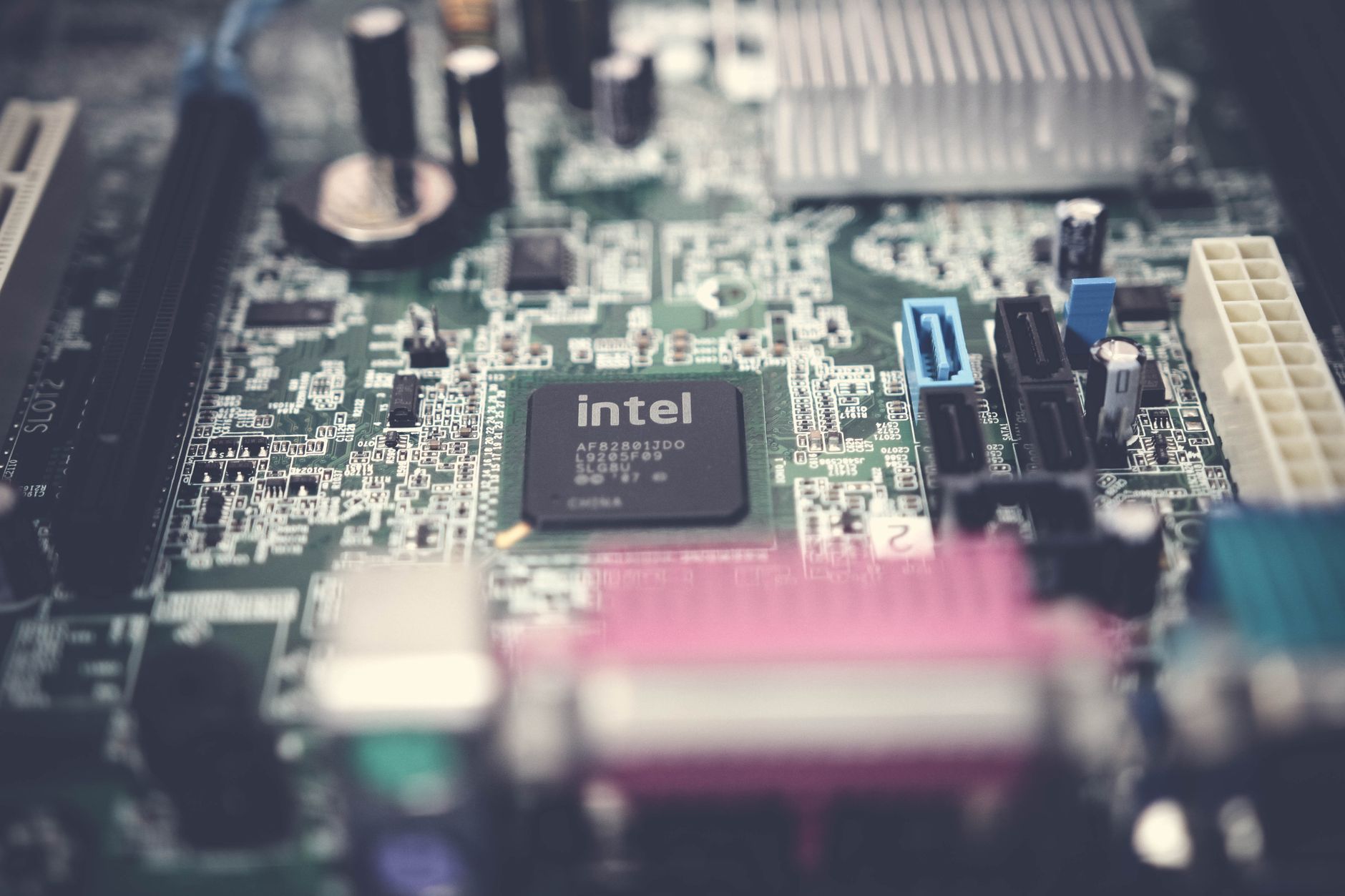

Detailed image of a computer motherboard highlighting an Intel chip with surrounding components. — Photo by Pok Rie

Intel’s 14A node represents the culmination of its “5 Nodes in 4 Years” strategy and is the first to fully utilize the company’s post-FinFET transistor architecture. The process is built on two breakthrough technologies:

Gate-All-Around (GAA) RibbonFET Transistors: This successor to the FinFET structure wraps the gate material around a nanosheet (or ribbon) channel, providing superior electrostatic control. This enables higher drive currents at lower voltages, directly translating to better performance-per-watt—a non-negotiable metric for power-constrained telecom sites and massive data centers.
PowerVia (Backside Power Delivery): Intel’s implementation separates the power delivery network from the signal interconnects by moving it to the back of the silicon wafer. This reduces voltage drop (IR drop), minimizes signal interference, and frees up front-side routing resources. For complex System-on-Chips (SoCs) used in network switches and routers, this means cleaner signals, higher performance, and improved reliability.

The reported reduction in defect density is a leading indicator of yield—the percentage of functional dies on a wafer. A “better than expected” trajectory this early in development (roughly two years before planned mass production) suggests Intel’s process integration and tool calibration are ahead of schedule. For context, defect density typically follows a “learning curve,” and early improvements can significantly lower the final cost per transistor, a key factor in making advanced-node silicon economically viable for widespread telecom deployment.

Industry Impact: New Silicon for Next-Gen Network Infrastructure

Detailed view of an Intel i486 DX2 CPU installed on a vintage motherboard with chips and circuits. — Photo by Nicolas Foster

The arrival of a mature 14A process by 2028 will unlock new capabilities for network equipment providers (NEPs) and cloud operators building their own infrastructure:

6G & Advanced RAN Silicon: The foundational chips for 6G, expected to enter standardization around 2028-2030, will require unprecedented levels of integration, combining sub-terahertz RF, massive MIMO digital beamforming, and on-chip AI for real-time network optimization. 14A’s density and efficiency make it a prime candidate for these monolithic or chiplets-based designs.
Optical & Packet Transport: Coherent Digital Signal Processors (DSPs) for 1.6 Terabit and beyond optical interfaces, as well as programmable Ethernet switch ASICs for 1.6T ports, demand extreme transistor counts and power efficiency. 14A enables these specs.
Disaggregated & Virtualized Networks: The shift to cloud-native, O-RAN, and virtualized broadband network gateways (vBNG) relies on high-performance, merchant silicon. Intel’s process advancements directly benefit its own Xeon and Infrastructure Processing Unit (IPU) roadmaps, strengthening its position against ARM-based competitors in the data center and edge.
Supply Chain Diversification: Intel Foundry Services (IFS) aims to be a major alternative to TSMC and Samsung. A successful 14A ramp provides Ericsson, Nokia, Cisco, Huawei, and emerging Open RAN silicon vendors (like Marvell, Qualcomm) with a credible second source for leading-edge fabrication, enhancing supply chain resilience—a top priority post-global chip shortage.

Strategic & Regional Implications: A New Geopolitical Fabric in Chip Manufacturing

Close-up of a vintage Intel 486 CPU motherboard with PCI slots, highlighting retro technology compon — Photo by Nicolas Foster

The race to 2nm-and-beyond is as much about geopolitics and regional industrial strategy as it is about technology. Intel’s progress with 14A has several strategic dimensions:

US/EU Semiconductor Sovereignty: With major 14A fabs planned in Ohio (USA) and potentially in Europe (under the EU Chips Act), a successful node is critical for Western technological independence in critical infrastructure. Telecom operators and governments are increasingly mandating “trusted source” components for core networks.
Impact on Asian Telecom Markets: For leading Asian NEPs and hyperscalers in South Korea, Japan, and Taiwan, a competitive Intel Foundry offers leverage in negotiations and mitigates regional concentration risk. For India, a strategic partner of Intel, this could accelerate its “India Stack” and 6G ambitions by ensuring access to cutting-edge silicon.
Cost-Benefit for African & MENA Operators: While early adoption of 14A-based equipment will carry a premium, the long-term trajectory of reduced silicon cost and improved energy efficiency is vital for markets with high energy costs and expanding network demands. Efficient chips lower total cost of ownership (TCO) for 5G-Advanced and future network deployments.

Forward-Looking Analysis: The Telecom Silicon Horizon to 2030

Close-up of vintage Intel 486DX2 CPU on a classic motherboard with electronic components. — Photo by Nicolas Foster

Intel’s 14A news is a data point in a larger trend: the re-convergence of semiconductor advancement and network evolution. Looking ahead:

2026-2028: Expect first test chips and early design wins for 14A, targeting high-performance computing and AI training. Telecom-specific designs will enter the planning phase.
2028-2030: Mass production of 14A coincides with the early definition phase of 6G. We anticipate the first 6G prototype chips and next-gen optical DSPs to be based on this node or its immediate successor.
Competitive Landscape: TSMC’s N2 (2nm) with GAA is slated for 2025, with N1.4 (~1.4nm) expected around 2027. Samsung’s SF1.4 (1.4nm) target is 2027. Intel’s 14A timing (2028) positions it as a fast follower but with differentiated technology (PowerVia). The foundry battle will intensify, benefiting telecom buyers.
Network Operator Strategy: CTOs and network planners must now factor in the accelerated silicon roadmap into their 6G and network cloudification strategies. Partnerships with vendors investing in 14A designs will be crucial for future-proofing infrastructure investments.

In conclusion, the promising defect density metrics for Intel’s 14A process are more than a technical milestone; they are a bellwether for the next leap in network capability. As the telecom industry grapples with the demands of AI-native operation, ubiquitous connectivity, and sustainability, the underlying silicon foundation is being reforged. Intel’s progress, if sustained, ensures that the industry will have a powerful, efficient, and diversified engine to drive innovation well into the next decade.
